Container Specifications
Full specifications for all Chevron Tankers container types — dimensions, capacities, door openings and payload details for standard, open-top, flat rack, high cube and MAFI units.
Standard
20' Standard
Key Capacities
Inside Cubic Capacity1,168 cu.ft
Cargo Capacity47,795 lbs
Tare Weight5,115 lbs
Dimensions
Outside
Inside
Length
19'-10½"
19'-4³⁄₁₆"
Width
8'-0"
7'-9³¹⁄₃₂"
Height
8'-6"
7'-5⁴⁹⁄₆₄"
Door Opening
Height7'-5⁴⁹⁄₆₄"
Width7'-8³⁄₆₄"
Standard

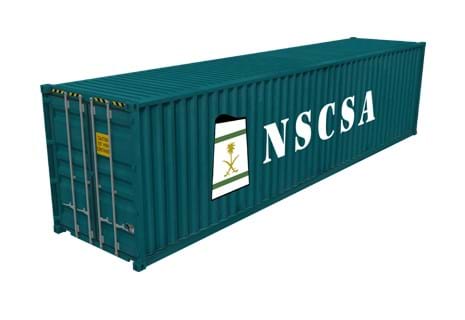

40' Standard
Key Capacities
Inside Cubic Capacity2,383 cu.ft
Cargo Capacity58,560 lbs
Tare Weight8,640 lbs
Dimensions
Outside
Inside
Length
40'-0"
39'-5⁴⁸⁄₆₄"
Width
8'-0"
7'-8³³⁄₆₄"
Height
8'-6"
7'-9³¹⁄₃₂"
Door Opening
Height7'-5⁴⁹⁄₆₄"
Width7'-8³⁄₆₄"
Open Top
20' Open Top
Key Capacities
Inside Cubic Capacity1,137 cu.ft
Cargo Capacity47,710 lbs
Tare Weight5,200 lbs
Dimensions
Outside
Inside
Length
19'-10½"
19'-4¹³⁄₃₂"
Width
8'-0"
7'-8³³⁄₆₄"
Height
8'-6"
7'-7⁴⁷⁄₆₄"
Door Opening
Height7'-3⁶¹⁄₆₄"
Width7'-8³⁄₆₄"
Open Top

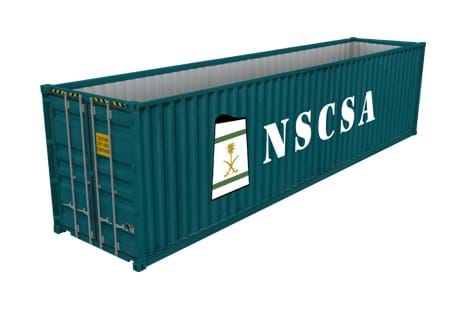

40' Open Top
Key Capacities
Inside Cubic Capacity2,325 cu.ft
Cargo Capacity58,050 lbs
Tare Weight9,150 lbs
Dimensions
Outside
Inside
Length
40'-0"
39'-5⁵⁷⁄₆₄"
Width
8'-0"
7'-8³³⁄₆₄"
Height
8'-6"
7'-7⁴⁷⁄₆₄"
Door Opening
Height7'-3⁶¹⁄₆₄"
Width7'-8³⁄₆₄"
Flat Rack
20' Collapsible Flat Rack
Key Capacities
Cargo Capacity61,290 lbs
Tare Weight4,850 lbs
Dimensions
Outside
Inside
Length
19'-10½"
19'-8"
Width
8'-0"
7'-3"
Height
8'-6"
7'-5"
Flat Rack
40' Collapsible Flat Rack
Key Capacities
Cargo Capacity89,507 lbs
Tare Weight9,700 lbs
Dimensions
Outside
Inside
Length
40'-0"
39'-7½"
Width
8'-0"
7'-6½"
Height
8'-6"
6'-5"
Chassis
40' and 20' Chassis
20' Chassis
Tare Weight6,500 lbs
40' Chassis
Tare Weight6,750 lbs
High Cube

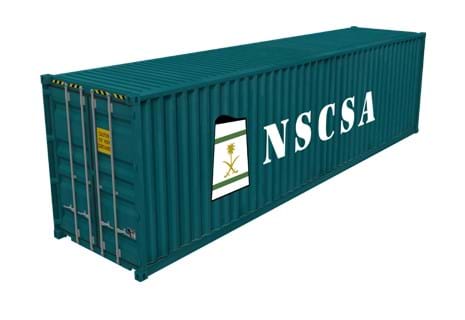

40' High Cube
Key Capacities
Inside Cubic Capacity2,690 cu.ft
Cargo Capacity58,657 lbs
Tare Weight8,543 lbs
Dimensions
Outside
Inside
Length
40'-0"
39'-5¾"
Width
8'-0"
7'-8³⁄₁₆"
Height
9'-6"
8'-9²⁷⁄₃₂"
Door Opening
Height8'-5⁴¹⁄₆₄"
Width7'-8³⁄₆₄"
MAFI
40' MAFI (3 types)
60 MT Capacity
Tare Weight16,680 lbs
80 MT Capacity
Tare Weight17,920 lbs
100 MT Capacity
Tare Weight17,636 lbs
MAFI
20' MAFI
20 MT Capacity
Tare Weight7,500 lbs
MAFI
62' MAFI
80 MT Capacity
Tare Weight29,100 lbs
Reference Data
General Container Specifications
| Size Type | Length MM | Width MM | Height MM | Capacity CBM |
|---|---|---|---|---|
| 20' ST | 5,898 | 2,352 | 2,393 | 33.2 |
| 20' ST | 19'-4¼" | 7'-8½" | 7'-10¼" | 1,171 CBF |
| 20' OT | 5,898 | 2,352 | 2,330 | 32.2 |
| 20' OT | 19'-4¼" | 7'-8½" | 7'-7¾" | 1,137 CBF |
| 40' ST | 12,032 | 2,352 | 2,393 | 67.7 |
| 40' ST | 39'-5¾" | 7'-8½" | 7'-10¼" | 2,390 CBF |
| 40' HC | 12,032 | 2,352 | 2,698 | 76.3 |
| 40' HC | 39'-5¾" | 7'-8½" | 8'-10¼" | 2,694 CBF |
| 40' OT | 12,032 | 2,352 | 2,330 | 65.8 |
| 40' OT | 39'-5¾" | 7'-8½" | 7'-7¾" | 2,325 CBF |
| Size Type | Length MM | Width MM | Height MM | Capacity CBM |
|---|---|---|---|---|
| 20' ST | 6,058 | 2,438 | 2,591 | 33.2 |
| 20' ST | 19'-10½" | 8'-0" | 8'-6" | 1,171 CBF |
| 20' OT | 6,058 | 2,438 | 2,591 | 32.2 |
| 20' OT | 19'-10½" | 8'-0" | 8'-6" | 1,137 CBF |
| 40' ST | 12,192 | 2,438 | 2,591 | 67.7 |
| 40' ST | 40'-0" | 8'-0" | 8'-6" | 2,390 CBF |
| 40' HC | 12,192 | 2,438 | 2,896 | 76.3 |
| 40' HC | 40'-0" | 8'-0" | 9'-6" | 2,694 CBF |
| 40' OT | 12,192 | 2,438 | 2,591 | 65.8 |
| 40' OT | 40'-0" | 8'-0" | 8'-6" | 2,325 CBF |
| Size Type | Width MM | Height MM | Capacity CBM |
|---|---|---|---|
| 20' ST | 2,340 | 2,280 | 33.2 |
| 20' ST | 7'-8" | 7'-5¾" | 1,171 CBF |
| 20' OT | 2,340 | 2,234 | 32.2 |
| 20' OT | 7'-8" | 7'-3" | 1,137 CBF |
| 40' ST | 2,340 | 2,280 | 67.7 |
| 40' ST | 7'-8" | 7'-5¾" | 2,390 CBF |
| 40' HC | 2,340 | 2,585 | 76.3 |
| 40' HC | 7'-8" | 8'-5¾" | 2,694 CBF |
| 40' OT | 2,340 | 2,234 | 65.8 |
| 40' OT | 7'-8" | 7'-3" | 2,325 CBF |
| Size Type | Max Gross (lbs) | Tare (lbs) | Net Payload (lbs) | Capacity CBF |
|---|---|---|---|---|
| 20' ST | 67,200 | 5,030 | 62,170 | 1,171 |
| 20' OT | 52,910 | 5,200 | 47,710 | 1,137 |
| 40' ST | 67,200 | 8,250 | 58,950 | 2,390 |
| 40' HC | 67,200 | 8,620 | 58,580 | 2,694 |
| 40' OT | 67,200 | 9,150 | 58,050 | 2,325 |
MAFI Trailers
MAFI Specifications
| Length | Payload | Platform Height | Ground Clearance | Wheel Dimensions |
|---|---|---|---|---|
| 20' | 30 Tons / 30,000 KG | 690 mm | 250 mm | 18 × 10 × 16 in |
| 40' | 60 Tons / 60,000 KG | 780 mm | 250 mm | 22 × 12 × 16 in |
| 40' | 80 Tons / 80,000 KG | 800 mm | 280 mm | 22 × 14 × 16 in |
| 40' | 100 Tons / 100,000 KG | 750 mm | 290 mm | 22 × 16 × 16 in |
| 62' | 80 Tons / 80,000 KG | 850 mm | 284 mm | 22 × 14 × 16 in |
